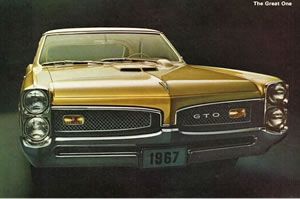

1967 Pontiac GTO
Few changes were made on the 1967 GTO from the previous year.

1967 Pontiac GTO

1967 saw the last year for boxy straight lines, a new gun in the Pontiac model lineup, the Firebird, would shape the next years GTO lineup. There were few differences on the 1967 GTO from the previous year. Most notable were the twin pin stripes along the upper beltline and body side accent moldings were slightly revised. GTO buyers also had a new choice of power when it came to engine displacement. Standard was the new 400 cubic inch engine that produced 255 horsepower. A severe drop in standard horsepower from the previous year. Two optional horsepower rated 400's were available to power hungry consumers. A 335 and a 360 horsepower 400 cubic inch motor were available.





1967 Pontiac GTO Production

Model Number Body/Style Number Body Type & Seating Factory Price Shipping Weight Total Production
GTO Series 242
242 07 2d Coupe - 5P $2,871 3,425 lbs 7,029
242 17 2d Hardtop - 5P $2,935 3,430 lbs 65,176
242 67 2d Convertible - 5P $3,165 3,415 lbs 9,517

NOTES:

  1. 81,722 GTOs were built in 1967
  2. 39,128 GTOs had synchromesh and 42,594 had automatic

Model Series Identification

GTO 2d Coupe - 5P - 24207 GTO 2d Hardtop - 5P - 24217 GTO 2d Convertible - 5P - 24267

Chassis Data

Model Wheelbase Overall Length Front Tread Rear Tread Tires
GTO 115 in 206.6 in 58 in 59 in F70 x 14

VIN Decoding

First Symbol - Manufacturer
2 = Pontiac
Second & Third Symbol - Series
23 = Firebird 39 = Safari
24 = Firebird Espirit 42 = GTO
26 = Firebird Formula 400 52 = Catalina & Ventura
28 = Trans Am 56 = Executive
33 = Standard Tempest 62 = Bonneville
35 = Custom "S" 76 = Grand Prix
37 = LeMans
Fourth & Fifth Symbol - Body Style
27 = two-door sedan 57 = two-door hardtop
35 = station wagon two seat single action tailgate 67 = convertible
36 = station wagon two seat dual action tailgate 69 = four-door sedan
37 = two-door hardtop 87 = two-door hardtop
39 = four-door hardtop
Sixth Symbol - Last Digit Of The Model Year
7 = 1967
Seventh Symbol - Assembly Plant
(A) Atlanta, Georgia (P) Pontiac, Michigan
(B) Baltimore, Maryland (R) Arlington, Texas
(C) Southgate, California (X) Kansas City, Kansas
(E) Linden, New Jersey (Z) Fremont, California
(G) Framingham, Massachusetts (1) Oshawa, Ontario, Canada
(L) Van Nuys, California (2) St. Therese, Quebec, Canada
(N) Norwood, Ohio
Last Six Symbols - Production Sequence
Started at 100001

1967 Pontiac GTO Options

Group # Part # Code Description Suggested List Price
9.650 984849 AF Verbra-Phonic Amplifier Not Available
7.629 984321 AMF Spare Wheel & Tire Cover $3.00
9.778 984625 AF Rear Window Defogger Not Available
8.891 984776 AF Tissue Dispenser Not Available
3.705 984718 AM Tail Pipe Extension $9.10
3.705 984860 AF Tail Pipe Extension w/o Turbo Hydra-Matic $9.10
8.153 984728 AM Fender Liner - Red Not Available
9.990 985592 AM Fire Extinguisher (2 3/4 lbs.) $14.95
9.990 985593 AM Fire Extinguisher Re-Charge Kit $2.15
9.755 984814 AF Vacuum Gauge $29.50
8.845 984802 AF Heater & Defroster $57.35
8.845 984751 AF Heater Control $6.05
0.034 984642 SPA Engine Block Heater (8-cyl) $10.25
4.006 984848 AM Gear Shift Knob (Walnut) - 3-Speed Manual $5.95
9.773 984896 AF Left Hand Spot Light Not Available
9.773 984897 AF Right Hand Spot Light Not Available
8.891 986602 AM Litter Container - Blue $2.40
8.891 986603 AM Litter Container - Fawn $2.40
8.891 986607 AM Litter Container - Black $2.40
8.891 986608 AM Litter Container - Red $2.40
8.891 984834 SAS Litter Container Assortment $14.40
3.028 984825 AM Gas Cap Lock $3.50
7.633 984701 AMF Spare Tire Lock $5.05
15.294 984826 AM Trunk Mat $9.95
15.286 984661 AM Front Mat Full (Ivory) $9.95
15.286 984655 AM Front Mat Pair (Ivory) $7.95
15.306 984114 AM Rear Mat Pair (Ivory) $7.65
15.286 984659 AM Front Mat Full (Black) $9.95
15.286 984653 AM Front Mat Pair (Black) $7.95
15.306 984512 AM Rear Mat Pair (Black) $7.65
15.286 984785 AM Front Mat Full (Red) $9.75
15.286 984784 AF Front Mat Pair (Red) $8.15
15.306 984787 AF Rear Mat Pair (Red) $7.75
15.286 984663 AF Front Mat Full (Blue) Not Available
15.286 984657 AM Front Mat Pair (Blue) Not Available
15.286 984658 AF Front Mat Pair (Turquoise) Not Available
12.286 984664 AF Front Mat Full (Turquoise) Not Available
15.286 984662 AM Front Mat Full (Bronze) Not Listed
10.185 984873 AM Visor Vanity Mirror (L.H. or R.H.) $1.53
9.650 984730 AF Manual Control Radio Not Available
12.242 984813 AF Deck Lid Release Not Available
9.675 993502 A Child Safety Seat - Standard $8.95
9.675 987499 A Child Safety Seat - Deluxe $18.95
9.679 993970 A Infant Safety Carrier Seat $9.95
9.665 984847 AF Rear Speaker Not Available
8.039 984721 AF Rally Stripe - Black Not Available
8.039 984722 AF Rally Stripe - Red Not Available
8.039 984723 AF Rally Stripe - White Not Available
8.039 984724 AF Rally Stripe - Blue Not Available
9.750 988559 AF Hood Tachometer $75.00
5.880 984922 AM Tire Inflator - Fire Extinguisher (CO-2) - S/S Spare $7.95
2.694 984838 AF Trailer Wire Harness $11.20

1967 Pontiac Engines

Location Of Engine Code: V-8 engine codes are found on front of block below right cylinder head.

Letter Code Engine Horsepower Torque Transmission Carburetor
WS 8-400 360 438 Manual 4 BC
WT 8-400 335 441 Manual 4 BC
WW 8-400 335 441 Manual 4 BC
WV 8-400 360 438 Manual 4 BC
XL 8-400 255 397 Turbo Hydra-Matic 2 BC
XM 8-400 255 397 Turbo Hydra-Matic 2 BC
XP 8-400 360 438 Turbo Hydra-Matic 4 BC
XS 8-400 360 438 Turbo Hydra-Matic 4 BC
YR 8-400 360 438 Turbo Hydra-Matic 4 BC
YS 8-400 335 441 Turbo Hydra-Matic 4 BC
YZ 8-400 360 438 Turbo Hydra-Matic 4 BC

Transmission Codes

Transmission Location
Turbo Hydra-Matic 350 Stamped on servo cover on right side of transmission.
Turbo Hydra-Matic 400 On metal tag fastened to right side of transmission case or on the left side of converter housing.
Powerglide Stamped on a metal tag located on the right side of the transmission.
Super Turbine 300 (TempesTorque) On metal tag fastened to right side of transmission case or stamped on lower servo cover.
Jetway On metal tag fastened to right side of transmission case or stamped on lower servo cover.
3-Speed Painted or stamped on the transmission case.
4-Speed Painted or stamped on the transmission case.
Plant and Type Designation Prefix Transmission Type
LA TempesTorque
LB TempesTorque
LD TempesTorque
LF TempesTorque
LG TempesTorque
LH TempesTorque
MA TempesTorque
MB TempesTorque
MC TempesTorque
PB Turbo Hydra-Matic 400
PC Turbo Hydra-Matic 400
PD Turbo Hydra-Matic 400
PG Turbo Hydra-Matic 400
PH Turbo Hydra-Matic 400
PQ Turbo Hydra-Matic 400
PS Turbo Hydra-Matic 400
PT Turbo Hydra-Matic 400
PX Turbo Hydra-Matic 400

Axle Codes

Location Of Axle Codes: Letter codes are on the rear of right hand axle tube near carrier or on the left hand brake drum.

Codes - Non-Locking Codes - Locking Ratio
WB YB 2.56
WC YC 2.78
WD YD 2.93
WE YE 3.08
WF YF 3.23
WG YG, ZG 3.36
WH YH, ZH 3.55
WK YK, ZK 3.90
  YL 4.33

Paint Codes - Exterior Colors

Color Name / Code Color Image Color Name / Code Color Image

A - Starlight Black
Lucite® Code - 88L
Dulux® Code - 93-005

M - Plum Mist Metallic
Lucite® Code - 4832L
Dulux® Code - 4832DH

C - Cameo Ivory
Lucite® Code - 4024L
Dulux® Code - 93-93774

N - Burgundy Metallic
Lucite® Code - 4624LH
Dulux® Code - 181-97213M

D - Monreux Blue Metallic
Lucite® Code - 4815L
Dulux® Code - 4815D

O - Coronado Gold Metallic
Lucite® Code - 4946L
Dulux® Code - 4946D

E - Fathom Blue Metallic
Lucite® Code - 4817L
Dulux® Code - 4817D

P - Silverglaze Metallic
Lucite® Code - 4820L
Dulux® Code - 4820D

F - Tyrol Blue Metallic
Lucite® Code - 4850L
Dulux® Code - 4850D

Q - Verdoro Green Metallic
Lucite® Code - 4947LH
Dulux® Code - 4947DH

G - Signet Gold Metallic
Lucite® Code - 4825L
Dulux® Code - 4825D

R - Regimental Red
Lucite® Code - 4822LH
Dulux® Code - 4822DH

H - Linden Green Metallic
Lucite® Code - 4816L
Dulux® Code - 4816D

S - Champagne Metallic
Lucite® Code - 4826L
Dulux® Code - 4826D

K - Golf Turquoise Metallic
Lucite® Code - 4818L
Dulux® Code - 4818D
T - Montego Cream
Lucite® Code - 4819L
Dulux® Code - 4819D

L - Mariner Turquoise Metallic
Lucite® Code - 4824L
Dulux® Code - 4824DH


NOTES: The first letter of a two-letter paint code identifies the body color. The second letter identifies the roof color. (For example, the combination EC on a Pontiac would indicate the body finished in Fathom Blue Metallic and the roof area in Cameo Ivory.) General Motors paint code plate for all models except Corvair and Corvette is located under the hood at the top of the firewall on the left or right of the upper shroud. Corvair paint code plate is on the left cross-rail in the engine compartment. Corvette paint code plate is on the instrument panel brace, below the glove compartment.


Paint Codes - Interior Colors

Color Name / Code Color Image Color Name / Code Color Image

Parchment
Lucite® Code - 9401L (semi-gloss)

Dark Blue Metallic
Lucite® Code - 9395LH (semi-gloss)
Lucite® Code - 9373LH (flat)

Medium Gold Metallic
Lucite® Code - 9390L (semi-gloss)

Red
Lucite® Code - 9366LM (semi-gloss)

Midnight Fawn Metallic
Lucite® Code - 9376LH (flat)
Dark Red Metallic
Lucite® Code - 9386LM (semi-gloss)
Dark Turquoise Metallic
Lucite® Code - 9399LH (semi-gloss)
Lucite® Code - 9374LH (flat)

Dark Red
Lucite® Code - 9201LM (flat)

Medium Blue Metallic
Lucite® Code - 9392LH (semi-gloss)

Black
Lucite® Code - 88L (semi-gloss)
Lucite® Code - 4428L (flat)

NOTE: Unpolished LUCITE® will generally produce a gloss comparable to original interior semi-gloss finishes. If lower gloss is required, use 1/2 oz. DuPont #4528S flattening compound to a pint of unreduced color.

Striping Colors

Black
Lucite® Code - 88L

Ivory
Lucite® Code - 4434L

Red
Lucite® Code - 4435LM

Trunk Colors (spatter finish)

Black - Gray - Aqua 389 - 259
