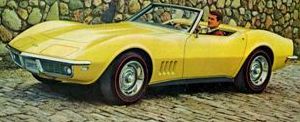

1968 Chevrolet Corvette

The all new 1968 Corvette sported a sweeping new design change from previous Corvettes. The all new styling resembled Chevrolet's Mako Shark II concept car and was a bold new look. The new Corvette also introduced hidden windshield wipers and removable T-tops on Coupe models. A new three speed automatic transmission replaced the previous two-speed unit. Under the hood, the Corvette gained several interesting engine options, including the 327 cid V8 L79 rated at 350 hp, and the L89 aluminum head option for the L71. The rare L88 engine option was still available for a whopping $1,032, and just 115 were sold. The 427 engine option remained a popular choice among performance seekers. Identifying the 427, was a special domed hood that allowed for engine clearance. Mandatory options included an aluminum radiator, heavy duty brakes, and the Muncie M-22 transmission. Luxury options such as Power windows, power steering, and radios were not available. Corvette production rose to a new all-time high of 28,566 units.

1968 Chevrolet Corvette Production Numbers

Model Number	Body/Style Number	Body Type & Seating	Factory Price	Shipping Weight	Total Production
Corvette
94	37	2 Dr Sport Coupe	$4,663	3,055 lbs	9,936
94	67	2 Dr Convertible	$4,347	3,070 lbs	18,630

Notes: A total of 216 Corvettes with the L88 (427-cid/560-hp) option were sold in 1967-1969 models. Of these, 20 were 1967 models.

Chassis Data

Model	Wheelbase	Overall Lenght	Width	Front Tread	Rear Tread	Tires
Corvette	98 in	182.1 in	69.2 in	58.3 in	59 in	F70 x 15

1968 Chevrolet Corvette Options

Code	Description	Price
898	Genuine Leather Seats	$79.00
A01	Soft-Ray Tinted Windows (all glass)	$15.80
A02	Soft-Ray Tinted Windshield	$10.55
A31	Power Windows	$57.95
A82	Headrests	$42.15
A85*	Shoulder Belts	$26.35
C07	Auxiliary Hardtop	$231.75
C08	Vinyl Covering	$52.70
C50	Rear Window Defroster	$31.60
C60	Air Conditioning	$412.90
F41	Special Front & Rear Suspension	$36.90
G76	3.36:1 Optional Rear Axle Ratio	$2.20
G81	Positraction Rear Axle	$46.35
G96	3.55:1 Optional Rear Axle Ratio	$2.20
G97	2.73:1 Optional Rear Axle Ratio	$2.20
J50	Power Brakes	$42.15
J56	Special Heavy-Duty Brakes	$384.45
K66	Transistor Ignition System	$73.75
L36	427-cid/390-hp V8	$200.15
L68	427-cid/400-hp V8	$305.50
L71	427-cid/435-hp V8	$437.10
L79	327-cid/350-hp V8	$105.35
L88	427-cid/430-hp V8 (560-hp actual)	$947.90
L89	Aluminum Cylinder Heads for Engine Option L71	$368.65
M20	4-Speed Manual Transmission	$184.30
M21	4-Speed Close-Ratio Manual Transmission	$184.30
M22	Heavy-Duty 4-Speed Close-Ratio Manual Transmission	$236.30
M40	Turbo Hydra-Matic Transmission	$226.45
N11	Off Road Exhaust System	$36.90
N36	Telescopic Steering Column	$42.15
N40	Power Steering	$94.80
P01	Bright Metal Wheel Covers	$57.95
PT6	F70 x 15 Redline Tires	$31.30
PT7	F70 x 15 White Sidewall Tires	$31.35
U15	Speed Warning Indicator	$10.55
U69	AM-FM Radio	$172.75
U79	AM-FM Stereo Radio	$278.10
UA6	Alarm System	$26.35

NOTES: (A85) Convertible only. Shoulder Belts were included with Coupes at no charge.

1968 Chevrolet Corvette Engine Options

Location Of Engine Code: Stamped on the block in front of the right hand cylinder head.

Letter Code	Engine	Horsepower	Torque	Transmission	Carburetor
HE	8-327	300	360	3 & 4-Speed Manual	4 BC
HO	8-327	300	360	Turbo Hydra-Matic	4 BC
HP	8-327 #	350	360	4-Speed Manual	4 BC
HT	8-327 #	350	360	4-Speed Manual	4 BC
IL	8-427	390	460	4-Speed Manual	4 BC
IM	8-427 *	400	460	4-Speed Manual	3 - 2 BC
IO	8-427 *	400	460	Turbo Hydra-Matic	3 - 2 BC
IQ	8-427	390	460	Turbo Hydra-Matic	4 BC
IR	8-427	435	460	4-Speed Manual	3 - 2 BC
IT	8-427 #	430 (560)	450 (Not Available)	4-Speed Manual	4 BC
IU	8-427 #	435	460	4-Speed Manual	3 - 2 BC

# Special High Performance * = High Performance

Transmission Codes

Transmission	Location
Powerglide	All models stamped on the right side of transmission oil pan.
Turbo Hydra-Matic	Right hand vertical surface of transmission case
3-Speed	Corvair and fully synchronized Passenger (exc. Warner Gear) transmissions stamped on square boss on left side below and rear of cover
4-Speed	Passenger models (exc. Corvair) stamped on right side of case ahead of the extension.

Plant and Type Designation Prefix	Plant	Transmission Type
N	Muncie	4-Speed
W	Warner Gear	3 and 4-Speed
P	Muncie	4-Speed
R	Saginaw	4-Speed
S	Saginaw	3-Speed
M	Muncie	3-Speed, Overdrive*
C	Cleveland	Powerglide
T	Toledo	Powerglide
CA	Hydra-Matic	3-Speed, Automatic Turbo Hydra-Matic
D	Saginaw	Overdrive
K	McKinnon	3-Speed
E	McKinnon	Powerglide
O	Saginaw	Overdrive
X	Cleveland	Turbo Hydra-Matic 350
B	Cleveland	Turbo Hydra-Matic 350
Y	Toledo	Turbo Hydra-Matic 350
A	Cleveland	2-Speed, Manual Powerglide

*Overdrive distinguished from 3-Speed by physical appearance only. The above transmissions (exc. Warner Gear) will carry a production code number such as: C1116N (C = Cleveland Powerglide, 11 = November, 16 = 16th, N = Night Shift). The Warner Gear transmissions will carry a production code number such as: WG1031 (W = Warner Gear 4-Spd., G = July, 10 = 10th, 7 = 1967, 1 = First Shift).

1968 Chevrolet Corvette Exterior Paint Codes

Color Name / Code	Color Image	Color Name / Code	Color Image
900 - Tuxedo Black Lucite® Code - 88L Dulux® Code - 93-005		983 - British Green Metallic Lucite® Code - 4949L Dulux® Code - 4949D
972 - Polar White Lucite® Code - 4714L		984 - Safari Yellow Lucite® Code - 4906L Dulux® Code - 4906D
974 - Rally Red Lucite® Code - 4688LH Dulux® Code - 93-97541H		986 - Silverstone Silver Metallic Lucite® Code - 4907L Dulux® Code - 4907D
976 - Le Mans Blue Metallic Lucite® Code - 4908L Dulux® Code - 4908D		988 - Cordovan Maroon (metallic) Lucite® Code - 4915LH Dulux® Code - 4915DM
978 - International Blue Metallic Lucite® Code - 4909L Dulux® Code - 4909D		992 - Corvette Bronze Metallic Lucite® Code - 4910LH Dulux® Code - 4910DH
NOTES: The first letter of a two-letter paint code identifies the body color. The second letter identifies the roof color. (For example, the combination RA on a Chevrolet would indicate the body finished in Matador Red and the roof area in Tuxedo Black.) General Motors paint code plate for all models except Corvair and Corvette is located under the hood at the top of the firewall on the left or right of the upper shroud. Corvair paint code plate is on the left cross-rail in the engine compartment. Corvette paint code plate is on the instrument panel brace, below the glove compartment.

1968 Chevrolet Corvette Interior Paint Codes

Color Name / Code	Color Image	Color Name / Code	Color Image
Tobacco Lucite® Code - 9543L (semi-gloss)		Dark Orange Metallic Lucite® Code - 9544L (semi-gloss)
Gunmetal Metallic Lucite® Code - 9542L (semi-gloss)
		Dark Red Lucite® Code - 9545LH (semi-gloss)
Medium Bright Blue Metallic Lucite® Code - 9540L (semi-gloss)		Black Lucite® Code - 88L (semi-gloss)
Dark Bright Blue Metallic Lucite® Code - 9541L (semi-gloss)
NOTE: Unpolished LUCITE® will generally produce a gloss comparable to original interior semi-gloss finishes. If lower gloss is required, use 1/2 oz. DuPont #4528 flattening compound to a pint of unreduced color.

Trunk Colors (spatter finish)

Black - Gray - Aqua 389 - 259

Axle Codes

Location Of Axle Codes: The axles for Chevrolet will be built by Chevrolet Buffalo, Chevrolet Gear and Axle, Buick, Oldsmobile, and McKinnon. Divisional Manufacturer code letters will be metal stamped on the axle tube adjacent to the carrier for identification. Metal stamp on left rear axle tube on the rear side, letters and numerals 3/16 in. high, 3 in. outboard of carrier.

Codes - Non-Locking	Codes - Locking	Ratio	Inspection Cover
AK	AM, AU	3.36	10 Bolt
	AL, AT, AV, AW	3.08	10 Bolt
	AN, AZ	3.55	12 Bolt
AS	AO, FA	3.70	12 Bolt
	AP, FB	4.11	12 Bolt
	AY	2.73	10 Bolt
	FC	4.56	12 Bolt
