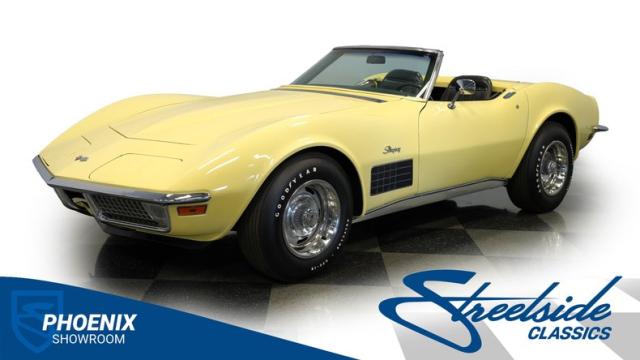

1970 Chevrolet Corvette

The big news for the Corvette in 1970 was Chevrolets new 454 V8 that replaced the power-plant pavement pounding 427s. 1970 sales fell to nearly half, due to the result of a strike at General Motors. A “cheese-grater” grille insert and front fender vents marked the ’70 ‘Vette. The top power-plant option for the ’70 Corvette went to the 454 LS5 rated at 390 hp. Base prices rose to $5,192 for the Coupe and $4,849 for the ragtop, with 17,316 produced. Only one Corvette with the LS7 (454-cid/465-hp) option was built. GM's policies against ultra-high performance cars at this time led to the option being stopped. The LS7 option is listed in some early 1970 sales literature but none were ever sold.





1970 Chevrolet Corvette Production Numbers

Model Number	Body/Style Number	Body Type & Seating	Factory Price	Shipping Weight	Total Production
Corvette
94	37	2 Dr Sport Coupe	$5,192	3,153 lbs	10,668
94	67	2 Dr Convertible	$4,849	3,167 lbs	6,648

Chassis Data

Model	Wheelbase	Overall Lenght	Width	Front Tread	Rear Tread	Tires
Corvette	98 in	182.5 in	69 in	58.7 in	59.4 in	F70 x 15

1970 Chevrolet Corvette Options

Code	Description	Price
A31	Power Windows	$63.20
A85	Shoulder Belts	$42.15
C07	Auxiliary Hardtop	$273.85
C08	Vinyl Covering	$57.95
C50	Rear Window Defroster	$36.90
C60	Air Conditioning	$447.65
G81	Positraction Rear Axle	$12.65
J50	Power Brakes	$47.40
L46	350-cid/350-hp V8	$158.00
LS5	454-cid/390-hp V8	$289.65
LT1	350-cid/370-hp V8	$447.60
M21	4-Speed Close-Ratio Manual Transmission	No Cost
M22	Heavy-Duty 4-Speed Close-Ratio Manual Transmission	$95.00
M40	Turbo Hydra-Matic Transmission	No Cost
N37	Tilt-Telescopic Steering Column	$84.30
N40	Power Steering	$105.30
NA9	California Emissions	$37.00
P01	Custom Wheel Covers	$57.95
P02	Deluxe Wheel Covers	$57.95
PT7	F70 x 15 White Stripe Tires	$31.30
PU9	F70 x 15 Raised White Letter Tires	$33.15
T60	Heavy-Duty Battery	$15.80
U69	AM-FM Radio	$172.75
U79	AM-FM Stereo Radio	$278.10
UA6	Alarm System	$31.60
ZJ1	Custom Interior Trim	$158.00
ZR1*	Special Purpose Engine Package	$969.00

NOTES: (ZR1) The LT1 was available as part of the ZR1 option. The "Z" meant it was part of Chevrolet's Special Items Group. The ZR1 option included the LT1 engine, M22 Heavy-Duty 4-Speed Manual Transmission, J50/J56 Dual-Pin Brakes with heavy-duty front pads and power assist, and F41 supension consisting of special 89 lb./in. ride rate front springs and 121 lb./in. ride rate rear springs, matching shock absorbers, and a .75 in. front stabilizer bar.

1970 Chevrolet Corvette Engine Options

Location Of Engine Code: Stamped on the block in front of the right hand cylinder head.

Letter Code	Engine	Horsepower	Torque	Transmission	Carburetor
CGW *	8-454	390	500	Turbo Hydra-Matic 400	4 BC
CRI (T.I.) *	8-454	390	500	4-Speed Manual	4 BC
CTL	8-350	300	380	3 & 4-Speed Manual	4 BC
CTM	8-350	300	380	Turbo Hydra-Matic 400	4 BC
CTN *	8-350	350	380	4-Speed Manual	4 BC
CTO % *	8-350	350	380	4-Speed Manual	4 BC
CTP (T.I.) *	8-350	350	380	4-Speed Manual	4 BC
CTQ (T.I.) % *	8-350	350	380	4-Speed Manual	4 BC
CTR #	8-350	370	380	4-Speed Manual	4 BC
CTU (T.I.) #	8-350	370	380	4-Speed Manual	4 BC
CTV (T.I.) #	8-350	370	380	4-Speed Manual	4 BC
CZL †	8-454	465	490	4-Speed Manual	4 BC
CZN †	8-454	465	490	Turbo Hydra-Matic 400	4 BC
CZU *	8-454	390	500	4-Speed Manual	4 BC

(T.I.) = Transistor Ignition * = High Performance † = Heavy Duty % = Used w/ Air Conditioning # = Special High Performance

Transmission Codes

Transmission	Location
Powerglide	All models stamped on the right side of transmission oil pan.
Turbo Hydra-Matic	Right hand vertical surface of transmission case
3-Speed	Corvair and fully synchronized Passenger (exc. Warner Gear) transmissions stamped on square boss on left side below and rear of cover
4-Speed	Passenger models (exc. Corvair) stamped on right side of case ahead of the extension.

Plant and Type Designation Prefix	Plant	Transmission Type
N	Muncie	4-Speed
W	Warner Gear	3 and 4-Speed
P	Muncie	4-Speed
R	Saginaw	4-Speed
S	Saginaw	3-Speed
M	Muncie	3-Speed, Overdrive*
C	Cleveland	Powerglide
T	Toledo	Powerglide
CA	Hydra-Matic	3-Speed, Automatic Turbo Hydra-Matic
D	Saginaw	Overdrive
K	McKinnon	3-Speed
E	McKinnon	Powerglide
O	Saginaw	Overdrive
X	Cleveland	Turbo Hydra-Matic 350
B	Cleveland	Turbo Hydra-Matic 350
Y	Toledo	Turbo Hydra-Matic 350
A	Cleveland	2-Speed, Manual Powerglide

*Overdrive distinguished from 3-Speed by physical appearance only. The above transmissions (exc. Warner Gear) will carry a production code number such as: C1116N (C = Cleveland Powerglide, 11 = November, 16 = 16th, N = Night Shift). The Warner Gear transmissions will carry a production code number such as: WG1031 (W = Warner Gear 4-Spd., G = July, 10 = 10th, 7 = 1967, 1 = First Shift).

1970 Chevrolet Corvette Exterior Paint Codes

Color Name / Code	Color Image	Color Name / Code	Color Image
15 - Laguna Gray Metallic Lucite® Code - 5134L Dulux® Code - 5134D		62 - Caramel Bronze Metallic Lucite® Code - 5128LM
27 - Bridgehampton Blue Metallic Lucite® Code - 5132L Dulux® Code - 5132D		72 - Monza Red Lucite® Code - 5027LH Dulux® Code - 5027DH
44 - Donnybrook Green Metallic Lucite® Code - 5133L Dulux® Code - 5133D		77 - Marlboro Maroon Metallic Lucite® Code - 5131LH
51 - Daytona Yellow Lucite® Code - 5026LH Dulux® Code - 5026D
NOTES: The first letter of a two-letter paint code identifies the body color. The second letter identifies the roof color. (For example, the combination 51-50 on a Chevrolet would indicate the body finished in Dusk Blue and the roof area in Dover White.) General Motors paint code plate for all models except Corvair and Corvette is located under the hood at the top of the firewall on the left or right of the upper shroud. Corvair paint code plate is on the left cross-rail in the engine compartment. Corvette paint code plate is on the instrument panel brace, below the glove compartment.

1970 Chevrolet Corvette Interior Paint Codes

Color Name / Code	Color Image	Color Name / Code	Color Image
Dark Green Metallic Lucite® Code - 9717LH (semi-gloss)		Red Lucite® Code - 4688LH (semi-gloss)
NOTE: Unpolished LUCITE® will generally produce a gloss comparable to original interior semi-gloss finishes. If lower gloss is required, use 1/2 oz. DuPont #4528 flattening compound to a pint of unreduced color.

Trunk Colors (spatter finish)

Black - Gray - Aqua 389 - 259

Axle Codes

Location Of Axle Codes: The axles for Chevrolet will be built by Chevrolet Buffalo, Chevrolet Gear and Axle, Buick, Oldsmobile, and McKinnon. Divisional Manufacturer code letters will be metal stamped on the axle tube adjacent to the carrier for identification. Metal stamp on left rear axle tube on the rear side, letters and numerals 3/16 in. high, 3 in. outboard of carrier.

Codes - Non-Locking	Codes - Locking	Ratio	Inspection Cover
CAK	CAM, CAU, CAX, CLR	3.36	10 Bolt
	CAL, CAT, CAV, CAW	3.08	10 Bolt
	CAN, CAZ	3.55	12 Bolt
	CAO, CAS, CFA	3.70	12 Bolt
	CAP, CFB	4.11	12 Bolt
	CAY	2.73	10 Bolt
	CFC	4.56	12 Bolt
